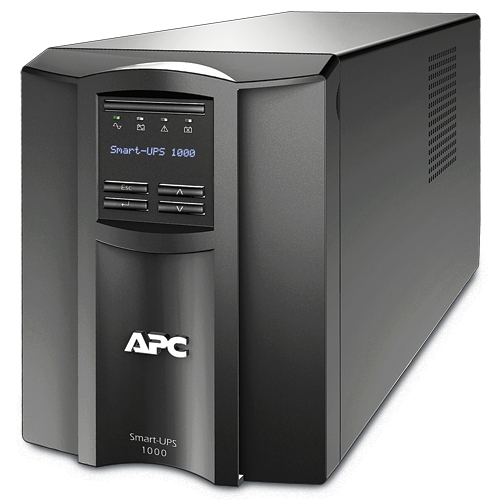

APC Smart-UPS 1000VA LCD 230V SMT1000IC

PART #: SMT1000IC

- APC Smart-UPS, 1000VA/700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB

- Multi-function LCD status and control console "

Output

Output Power Capacity: 700 Watts / 1000 VA

Max Configurable Power: 700 Watts / 1000 VA

Nominal Output Voltage: 230V

Output Voltage Note:

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion: Less than 5% at full load

Output Frequency (sync to mains):

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Output Voltages: 220, 240

Topology: Line Interactive

Waveform Type: Sine wave

Output Connections:

(8) IEC 320 C13

(2) IEC Jumpers

Input

Nominal Input Voltage: 230V

Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)

Input Connections: IEC-320 C14

Input voltage range for main operations: 160 - 286V

Input voltage adjustable range for mains operation: 151 - 302V

Other Input Voltages: 220, 240

Batteries & Runtime

Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time: 3 hour(s)

Replacement Battery: RBC6

RBC™ Quantity: 1

Communications & Management

Interface Port(s): SmartSlot, USB

Available SmartSlot™ Interface Quantity: 1

Control panel: Multi-function LCD status and control console

Audible Alarm:

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO): Optional

Surge Protection and Filtering

Surge energy rating: 459 Joules

Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height: 219.00 mm

Maximum Width: 171.00 mm

Maximum Depth: 439.00 mm

Net Weight: 18.86 KG

Shipping Weight: 22.77 KG

Shipping Height: 376.00 mm

Shipping Width: 328.00 mm

Shipping Depth: 595.00 mm

Color: Black

Units per Pallet: 12.00

Environmental

Operating Environment: 0 - 40 °C

Operating Relative Humidity: 0 - 95%

Operating Elevation: 0-3000 meters

Storage Temperature: -15 - 45 °C

Storage Relative Humidity: 0 - 95%

Storage Elevation: 0-15000 meters

Audible noise at 1 meter from surface of unit: 41.00 dBA

Online Thermal Dissipation: 100.00 BTU/hr
